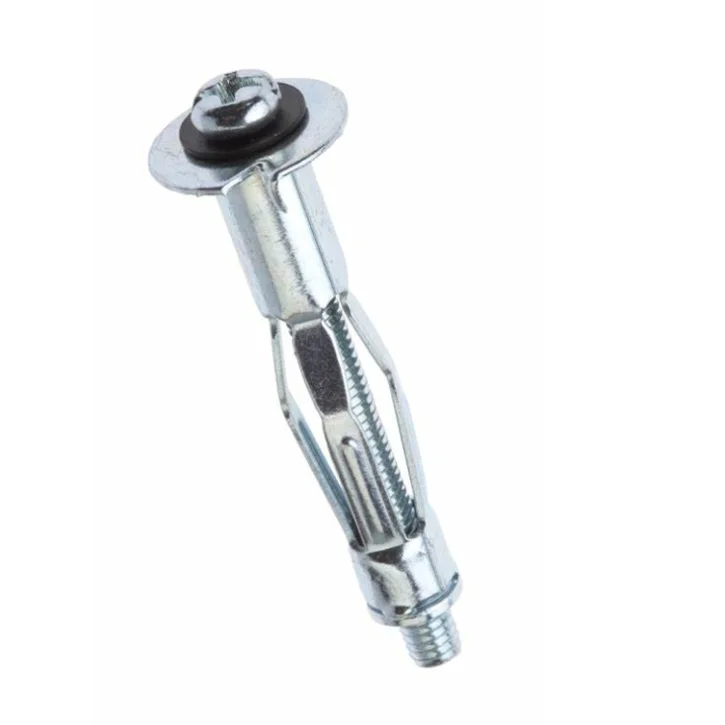

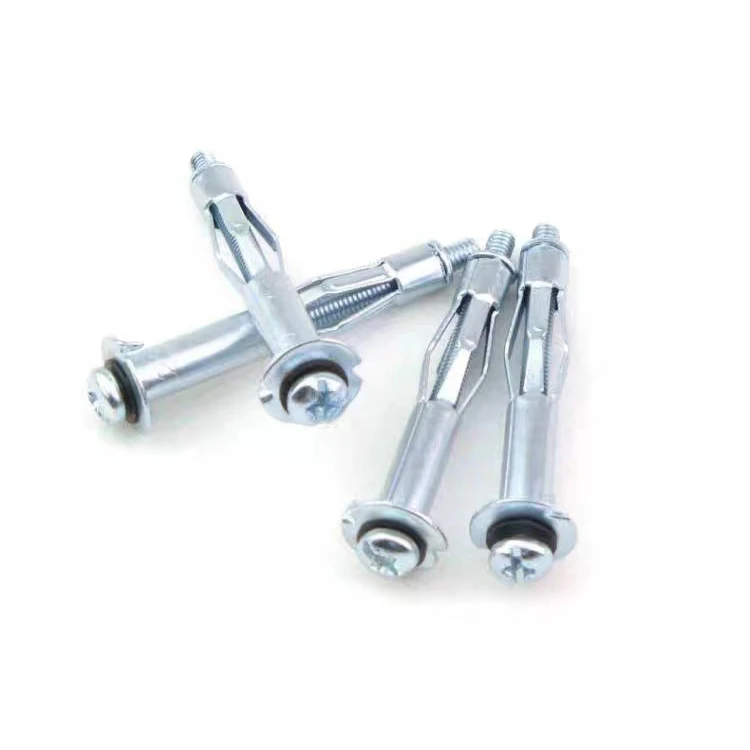

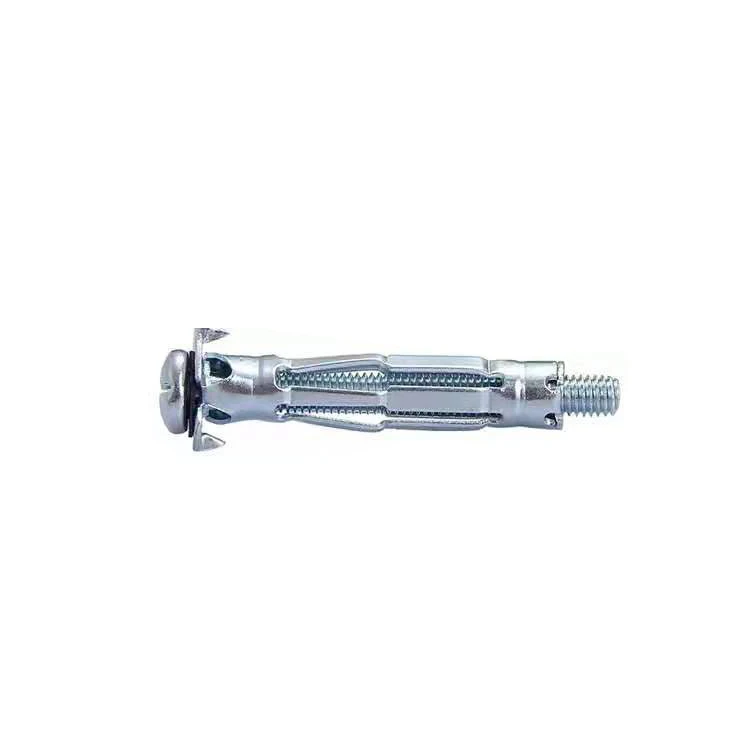

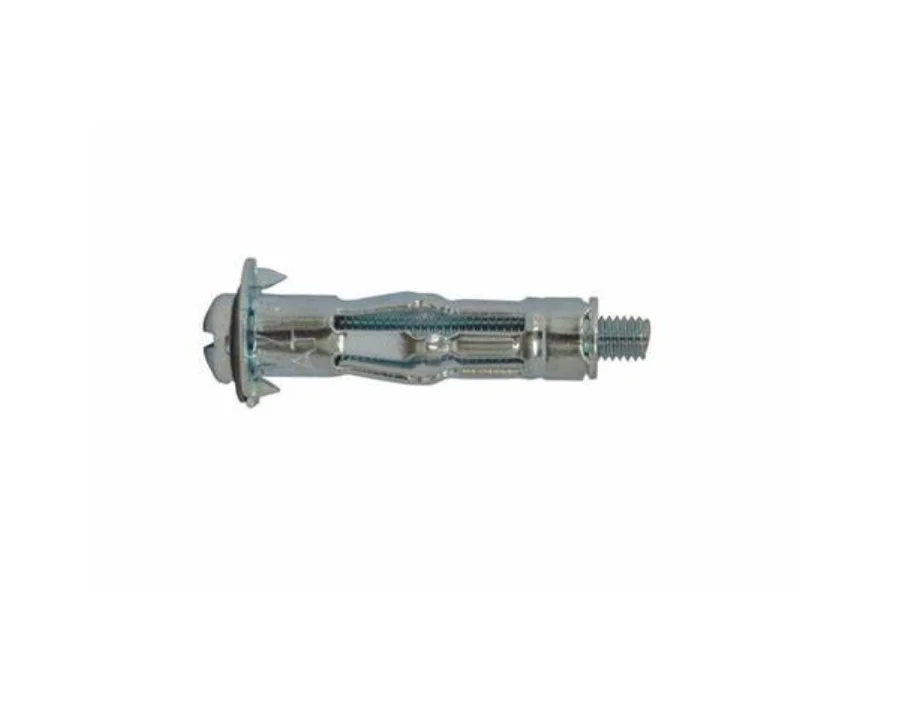

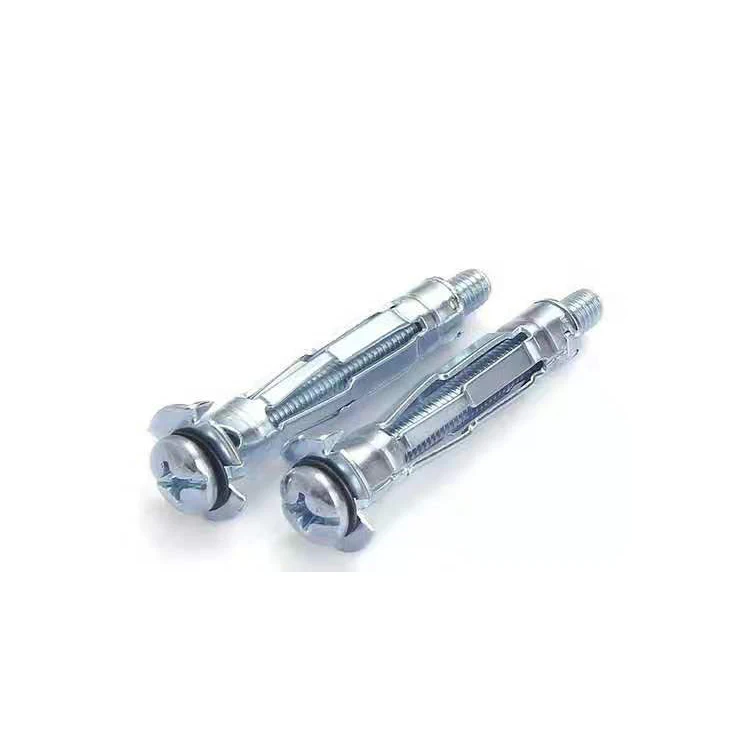

Hollow Wall Anchors (also called drywall anchors or toggle bolts) are specialized fasteners designed to secure objects to hollow or thin walls where traditional screws lack grip. They expand behind the wall surface when tightened, distributing weight across a larger area to prevent pull-through. Available in steel (zinc-plated), nylon, or stainless steel, they support loads from 5 kg to 100 kg, depending on design.
- Material:
- Steel: Zinc-plated (corrosion-resistant for general use).
- Nylon: Lightweight, non-conductive, and ideal for non-metal walls.
- Stainless Steel (304/316): Marine-grade for high-moisture environments.

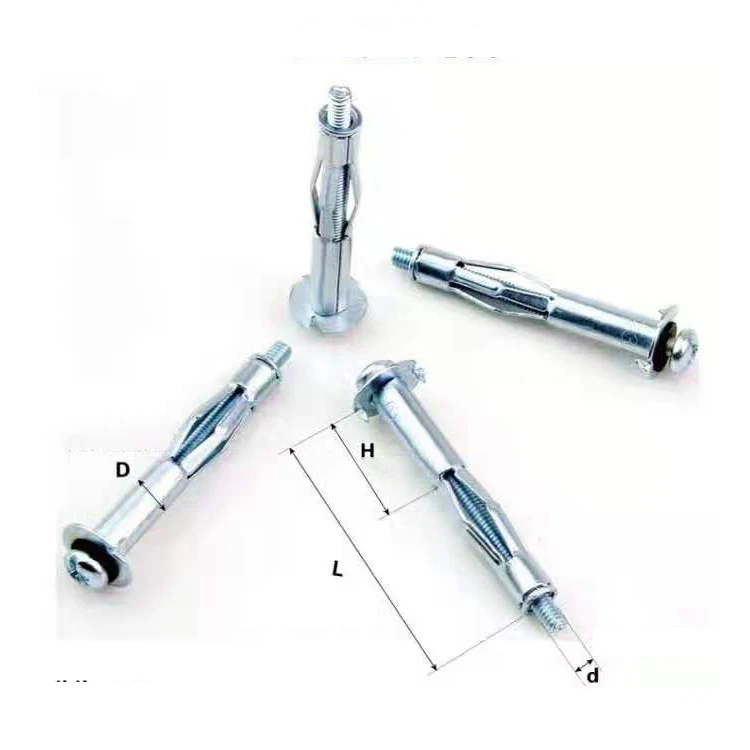

- Size Range:
- Diameter: 6–16 mm (suitable for 6–16 mm drill holes).
- Expansion Range: 20–50 mm (width after installation).
- Load Capacity:
- Light-Duty: 5–30 kg (nylon/plastic anchors).
- Heavy-Duty: 50–100 kg (steel toggle bolts).
- Design Types:
- Toggle Anchors: Folding metal wings that expand behind the wall.
- Plastic Anchors: Serrated or flanged designs for light loads (e.g., shelves, picture frames).
- Self-Drilling Anchors: Integrated drill tips for quick installation without pre-drilling.
- Standard Nylon Anchors (6–10 mm): 20,000 pieces (in-stock sizes).
- Steel Toggle Anchors: 5,000 pieces (heavy-duty variants like 10 mm diameter).
- Stainless Steel Anchors: 10,000 pieces (custom lengths available).
Factory Advantages: ISO 9001-certified production, load-testing reports, and support for custom load ratings or non-standard expansion sizes with lead times of 10–20 days.
- Residential: Hanging shelves, mirrors, TVs, and curtain rods on drywall or plaster.
- Commercial: Securing signage, light fixtures, and partition walls in offices or retail spaces.
- Industrial: Mounting control panels or lightweight equipment on metal or composite panels.
- Marine/RV: Installing cabinets or accessories on thin interior walls (stainless steel options).
- Easy Installation:
- Toggle anchors: Insert through hole, expand wings, and tighten with a screwdriver.
- Self-drilling types: No pre-drilling needed for soft materials like drywall.
- Load Distribution:
- Expanded wings or flanges reduce pressure on the wall surface, minimizing damage.
- Heavy-duty steel anchors support up to 100 kg (tested per ASTM F1553).
- Corrosion Resistance:
- Zinc-plated steel: 500+ hours salt spray for humid environments.
- 316 stainless steel: 1,000+ hours salt spray for coastal or marine use.
- Material Grades: Fire-resistant nylon (UL94 V-0) for commercial buildings.
- Special Coatings: UV-stabilized finishes for outdoor plastic anchors.
- Bespoke Designs: Oversized expansion wings for fragile surfaces or metric-imperial hybrid sizes.
- Versatility: Works with drywall, plasterboard, particleboard, and thin metal sheets.
- Cost-Effective: Eliminates the need for backing plates or complex installations.
- Safety Compliance: Meets EN 13830 (Europe) and ICC-ES AC140 (USA) for load-bearing standards.
Contact Us
Request a quote for hollow wall anchors tailored to your project! Factory-direct supply ensures reliable support for residential, commercial, and industrial applications. Bulk discounts available for orders over 50,000 pieces.
