| Attribute |
Details |
| Type |

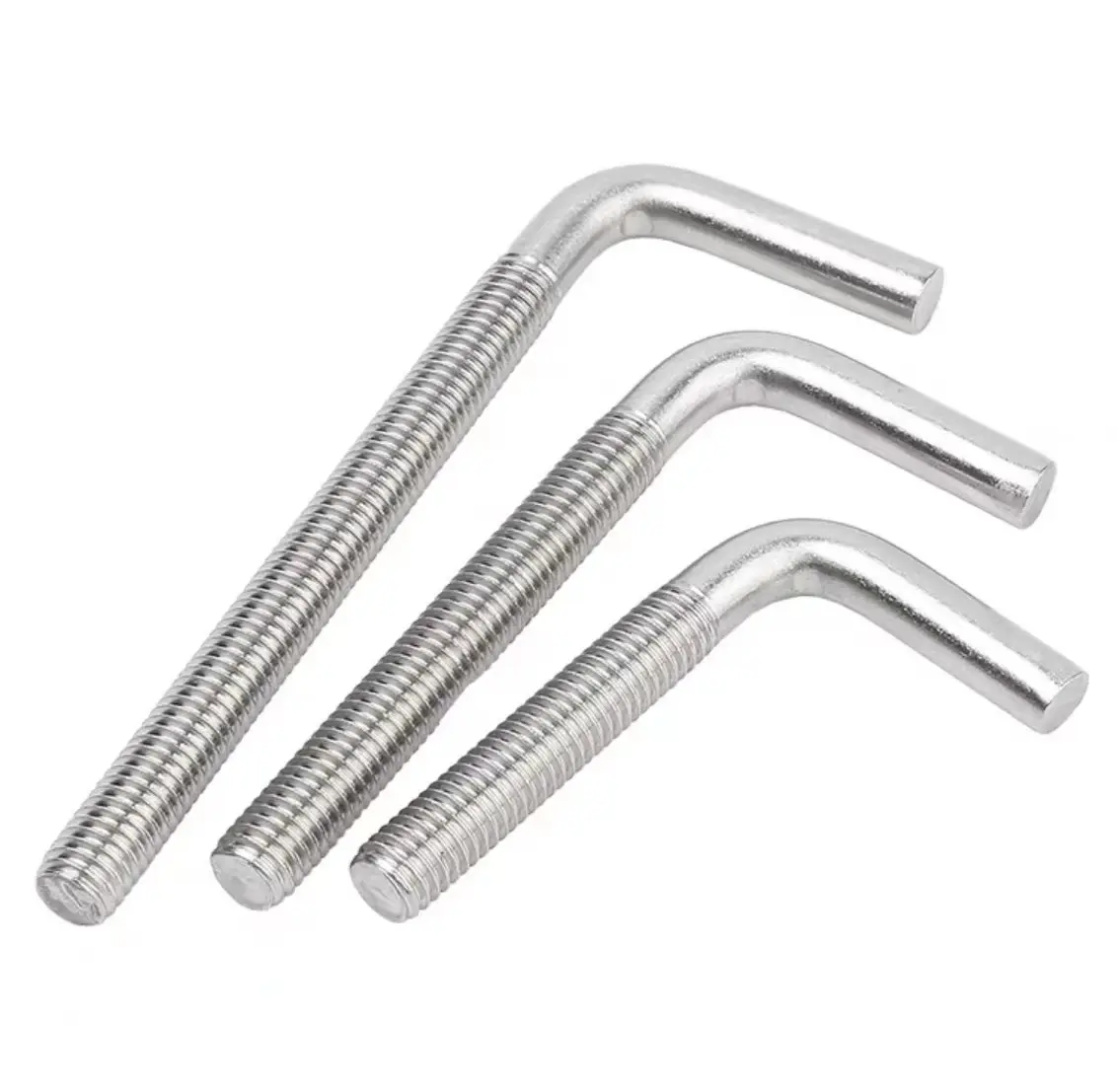

L Bolts (Angle Bolts, Right Angle Bolts) |
| Material |
- Carbon Steel (Q235, SS400, ASTM A36)
- Stainless Steel (304/316, AISI 304/316)
- Alloy Steel (ASTM A572 Grade 50) for High-Strength Use |
| Finish |
- Zinc Plated (Yellow/White, RoHS Compliant)
- Hot-Dip Galvanized (ASTM A153, ISO 1461)
- Powder Coated (Custom Colors)
- Black Oxide |
| Design |
- Right Angle (90°) L-Shaped Body
- One End: Threaded Shank with Hex Head
- Other End: Plain Shank with Anchor Plate (Optional) |
| Thread Type |
- Metric (M8-M36, ISO 4017)
- Imperial (5/16"-1-1/2", UNC/UNF)
- Custom Threads (e.g., Coarse Thread for Wood, Fine Thread for Metal) |
| Dimensions |
- Leg Lengths:
- Short Leg: 20mm–150mm (Metric); 1"–6" (Imperial)
- Long Leg: 50mm–300mm (Metric); 2"–12" (Imperial)
- Custom Leg Proportions Available (e.g., 3:1, 2:1 Ratios) |
| Strength Grade |
- Carbon Steel: Grade 4.8, 8.8
- Stainless Steel: A2-70 (304), A4-80 (316)
- Alloy Steel: Grade 10.9, 12.9 (Upon Request) |
| Standards Compliance |
- General Engineering Standards (ISO 4014 for Threads)
- Custom Compliance with Regional Codes (e.g., UBC, Eurocode 3 for Structural Use) |
| Corrosion Resistance |
- Salt Spray Test: 500+ Hours (Zinc Plated); 1000+ Hours (Hot-Dip Galvanized)
- Marine-Grade Stainless Steel Options for Coastal Projects |
| Packaging |
- Bulk: Bundled in Poly Bags with Corrugated Cartons
- Palletized for Heavy Orders (Up to 500kg per Pallet)
- Custom Labeling for Branded Distributors |
| Certifications |
- RoHS, REACH
- Material Test Certificates (MTC)
- ISO 9001:2015 Quality Certification
- Optional: Structural Load Test Reports |
| Applications |
- Structural Connections (Beams, Columns, Frames)
- Machinery Mounting, Equipment Bases, Industrial Fixtures
- Wood-to-Metal, Metal-to-Metal Angle Joints |
| Minimum Order Quantity (MOQ) |
200 Pieces (Standard Sizes); 500 Pieces (Custom Sizes) |
| Delivery Time |
15–30 Days (Standard); 30–45 Days (Custom Fabrication) |
| Customization |
- Non-Standard Angles (e.g., 80°, 100°)
- Pre-Drilled Holes in Anchor Plate
- Weldable Ends for Permanent Installations
- Anti-Vibration Coatings |
- Custom Design Flexibility: Tailored leg lengths and angles to fit unique structural requirements, reducing on-site modification costs.
- Corrosion Protection: Hot-dip galvanized and stainless steel options meet coastal and industrial environment demands, ensuring long-term durability.
- Structural Reliability: Engineered for high shear and tensile loads, suitable for seismic and wind-resistant applications in construction.
- Wholesale Efficiency: Competitive pricing for bulk orders, with streamlined production for standardized sizes and fast turnaround for custom designs.
- Global Usability: Compliant with major material and coating standards (ASTM, ISO, EN), facilitating easy import across regions.
Let me know if you need to highlight applications in specific industries (e.g., aerospace, marine) or add regional certification requirements!
JH Bolt Co., Ltd is a professional manufacturer of different types of bolts with more than 15 years rich manufacturer experience. The factory area is more than 1500 squares with more than hundreds different types ofnevproduction machines. There are more than 50 people who work here for at least 5 years.With quality &customer frst, staffs second, then company, Our products are widely recog-nized and trusted by users all over the world. Proft for the development of communication, We are here for you 12 hours a day, 7 days a week!
