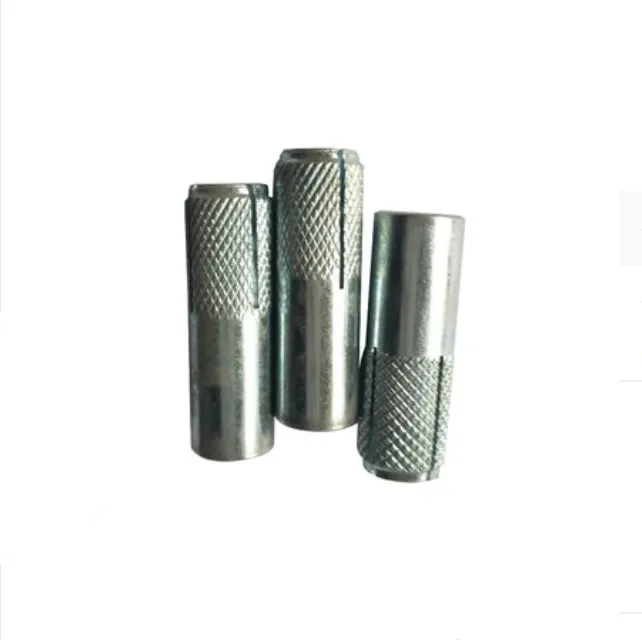

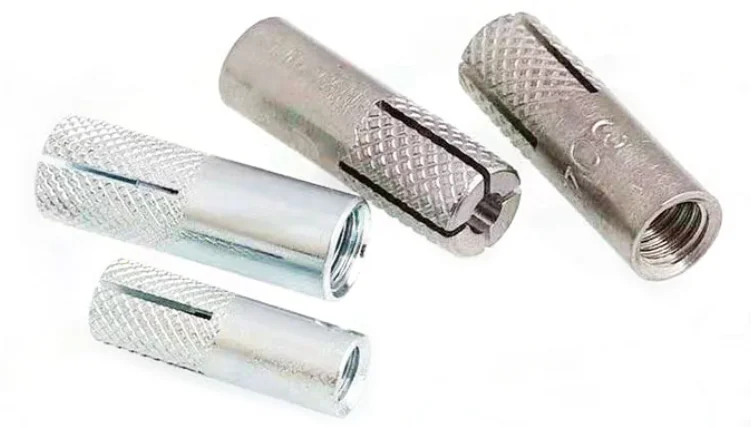

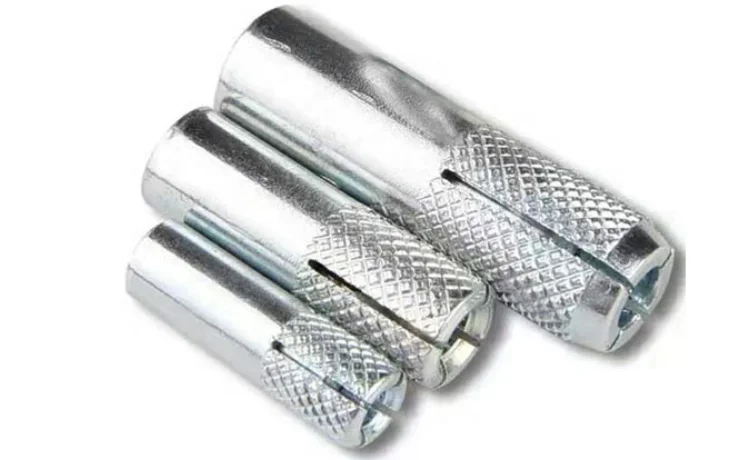

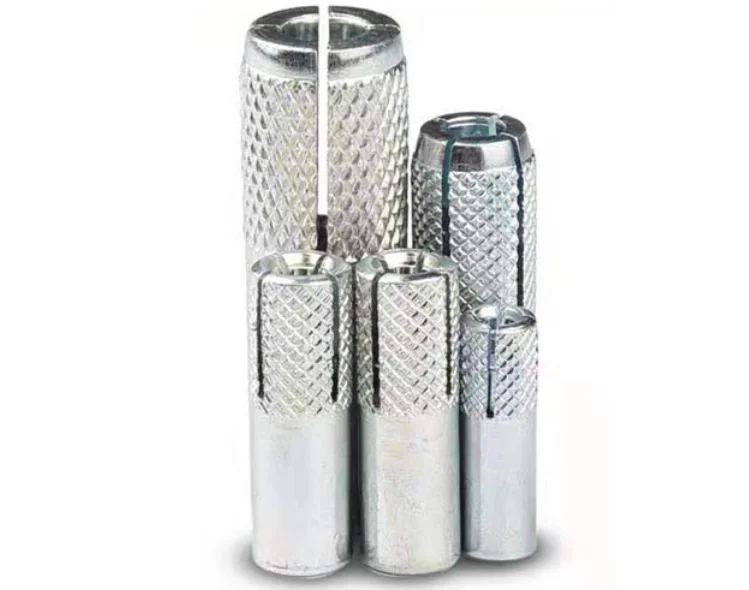

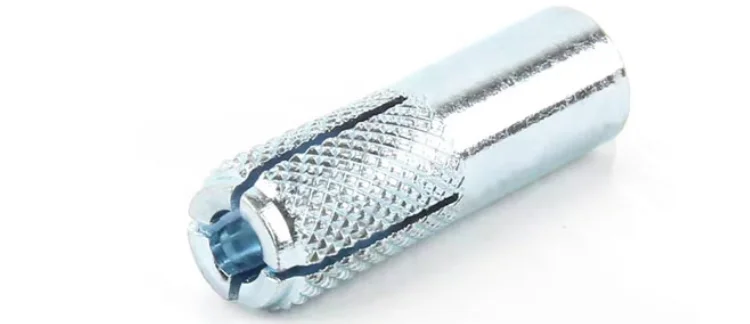

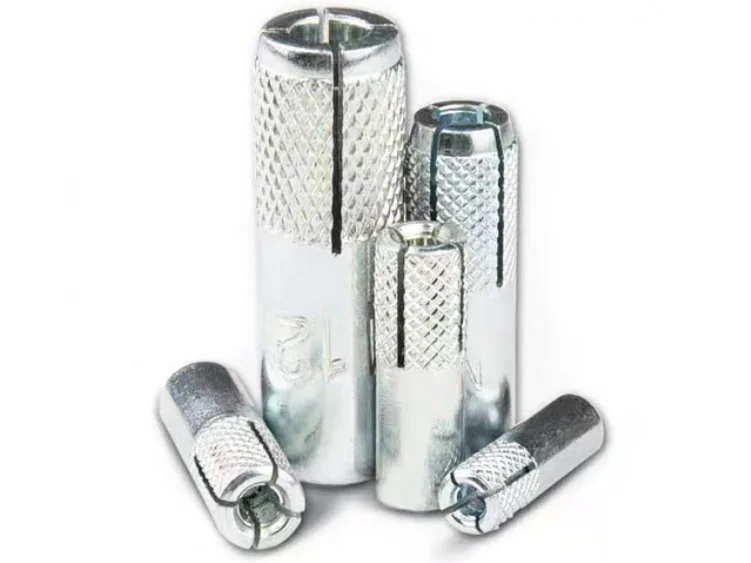

Drop-In Anchors are heavy-duty, internally threaded anchors designed for use in solid concrete, brick, or stone. Installed by dropping the anchor into a pre-drilled hole and expanding it with a setting tool, they provide a secure, flush-mounted threaded socket for bolts or screws. Manufactured from stainless steel (304/316), carbon steel (zinc-plated), or alloy steel, they are ideal for applications requiring high tensile and shear strength in static or seismic loads.
- Material:
- Stainless Steel: 304 (A2) for general corrosion resistance; 316 (A4) for marine/chemical environments.
- Carbon Steel: Grade 8.8 (zinc-plated or hot-dip galvanized).
- Alloy Steel: ASTM A193 Grade B7 (heat-treated for high-temperature applications).
- Size Range:
- Diameter: 1/4"–2" (imperial) / M6–M52 (metric).
- Length: 1"–12" (25–300 mm, matching drill hole depth).
- Design Features:
- Split Sleeve: Expands radially when set, creating a mechanical bond with the substrate.
- Internal Threads: Full-length, precision-cut (UNC/UNF or metric) for bolt compatibility.
- Flush Mount: No protrusion above the surface, ideal for floor or wall applications.
- Load Capacity:
- Tensile Strength: 2,000–25,000 lbs (907–11,340 kg) per anchor.
- Compliance: Meets ANSI/ACI 318 (USA) and EN 1992-4 (Europe) for structural use.
- Standard Stainless Steel 304 (1/2"–1"): 5,000 pieces (in-stock sizes).
- Carbon Steel HDG (M12–M24): 2,000 pieces (industrial-grade).
- Oversized Anchors (1.5"–2"): 1,000 pieces (custom manufacturing).
Factory Advantages: ISO 9001-certified production, magnetic particle inspection (MPI) for alloy steel anchors, and support for custom thread types or non-standard lengths with lead times of 15–30 days.
- Industrial Flooring: Securing heavy machinery, conveyors, and storage racks.
- Commercial Construction: Anchoring curtain walls, handrails, and steel framework to concrete.
- Transportation: Mounting vehicle restraints, bollards, and weigh scales in warehouses.
- Utilities: Fixing electrical panels, cable trays, and pipeline supports in power plants.
- Easy Installation: No special tools required beyond a drill and setting tool (e.g., impact driver).
- Corrosion Resistance:
- 316 stainless steel: 1,000+ hours salt spray (ASTM B117).
- Hot-dip galvanized carbon steel: 1,500+ hours salt spray for outdoor use.
- Vibration Resistance: Expansion design locks the anchor in place, reducing loosening risk in dynamic environments.
- Fire Rating: Compliant with ASTM E119 for fire-resistant construction projects.
- Material Grades: 410 SS (martensitic, high hardness) or 2205 duplex SS for extreme loads.
- Coatings: Dacromet (2,000+ hours salt spray) or zinc-nickel for military specifications.
- Bespoke Designs:
- Extended thread length for thick fixtures.
- Countersunk top for seamless tile or carpet installation.
- Load Guarantee: Factory-tested to 150% of stated capacity for safety redundancy.
- Documentation: Full traceability with material test reports (MTR) and installation guides.
- Sustainability: Recyclable metal components and low-energy manufacturing processes.
Contact Us
Request a quote for drop-in anchors tailored to your concrete fastening needs! Factory-direct supply ensures reliable performance in industrial, commercial, and infrastructure projects worldwide.
