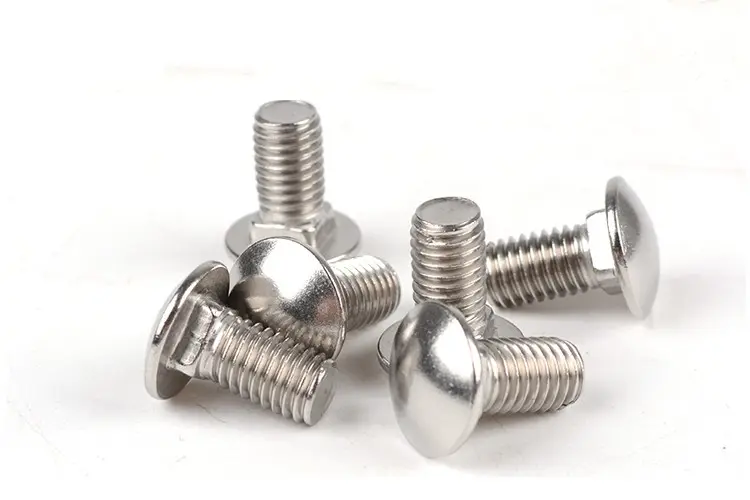

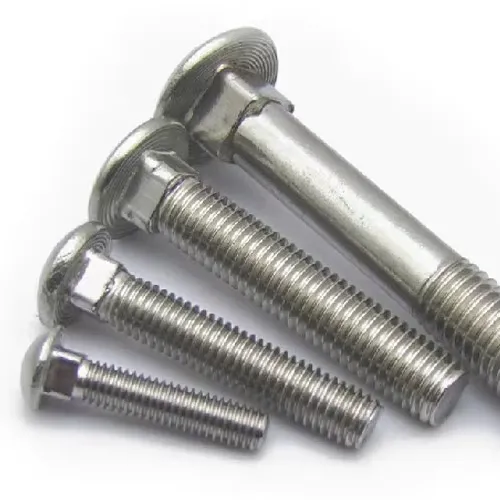

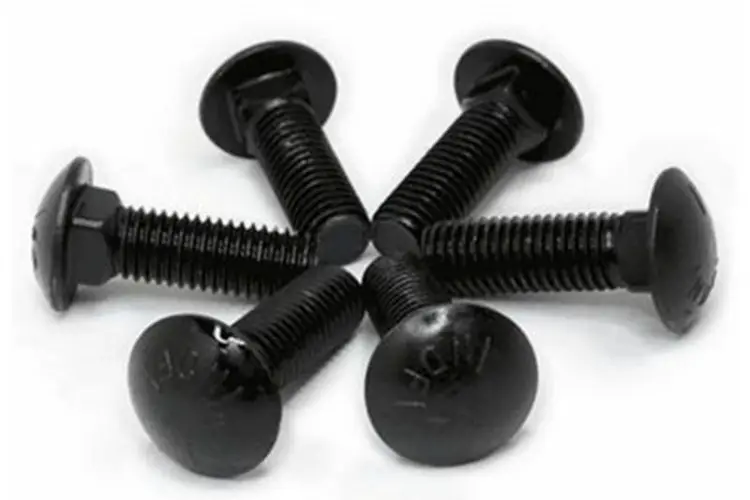

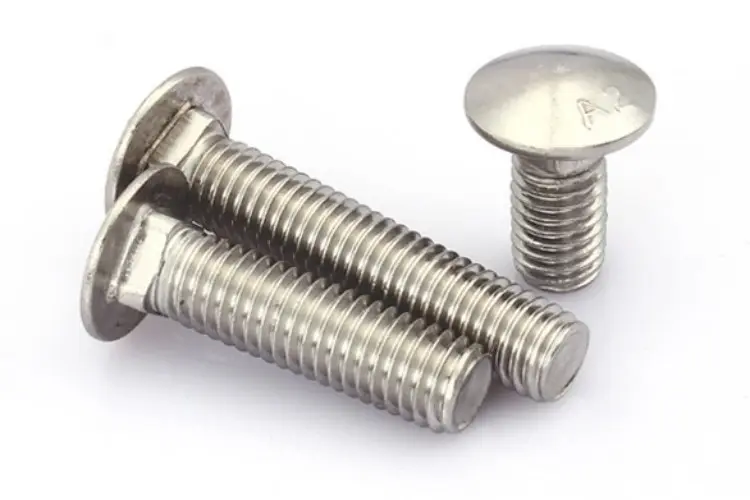

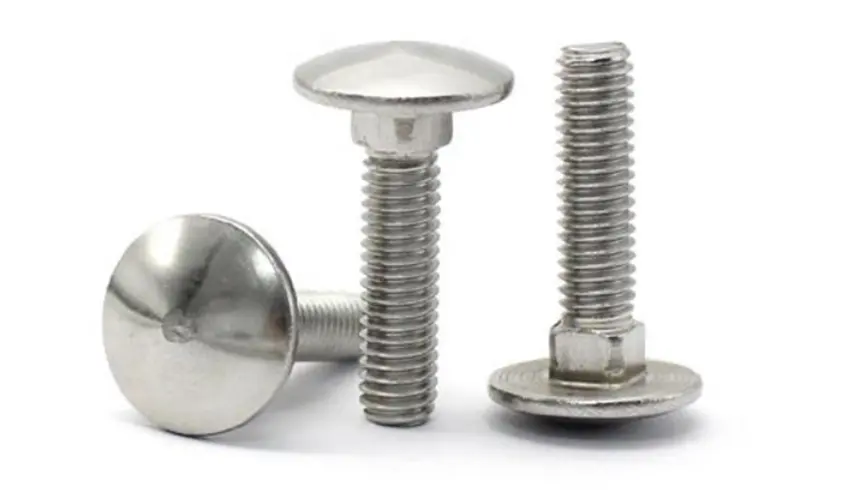

Carriage Bolts (also known as coach bolts) feature a rounded, domed head with a square neck beneath to prevent rotation during installation. Ideal for wood-to-metal or metal-to-metal connections, they are manufactured from carbon steel (Grade 4.8/8.8), stainless steel (304/316), or galvanized steel for corrosion resistance.
- Material:
- Carbon Steel (zinc-plated, yellow/clear).
- Stainless Steel (304/316 for outdoor/marine use).
- Alloy Steel (Grade 10.9 for high-tensile applications).
- Size Range:
- Diameter: M6–M30 (metric) / 1/4"–1-1/4" (imperial).
- Length: 10–300 mm (custom lengths available).
- Design:
- Domed Head: Smooth, rounded top for aesthetics and safety.
- Square Neck: Prevents turning when tightening nuts.
- Thread Type: Full or partial threads (UNC/UNF or metric).
- Standard Carbon Steel/Zinc-Plated: 1,000 pieces (in-stock sizes).
- Stainless Steel/Custom Designs: 2,000 pieces (small-batch sampling available).
Factory Advantages: ISO-certified production, material test reports, support for custom lengths, special coatings (e.g., Dacromet, black oxide), and bulk orders with lead times of 10–20 days.
- Woodworking: Furniture assembly, decking, and timber framing.
- Metal Fabrication: Machinery mounts, trailer frames, and structural connections.
- Outdoor Structures: Fences, playground equipment, and agricultural machinery.
- Automotive: Chassis components, engine mounts, and truck beds.
- Corrosion Resistance:
- Zinc plating (500+ hours salt spray) for general use.
- 316 stainless steel (1,000+ hours salt spray) for coastal/marine environments.
- Torque Resistance: Square neck design ensures secure tightening without head rotation.
- Safety: Smooth heads reduce risk of injury in exposed applications.
- Non-Standard Sizes: Custom diameters, lengths, or square neck dimensions.
- Special Coatings: PTFE (anti-seize), epoxy (color-matched), or hot-dip galvanized.
- Head Markings: Laser-engraved logos or part numbers for branding.
Contact Us
Request a quote for your carriage bolt needs! Factory-direct pricing and global shipping for industrial, construction, and DIY projects.
